The Kernel Trick in Support Vector Machines (SVMs)

1. The Core Problem - Real Data Is Almost Never Linearly Separable

Every computer-vision practitioner, roboticist, and 3D-print defect detector has met these patterns in the wild. Pixel intensities, joint angles, layer-height sensor readings. Almost nothing in the real world is linearly separable in the space we measure it. Hence we manually engineer better features until the classes separate with a line. That worked fine until the feature space exploded to millions of dimensions and our computers cried.

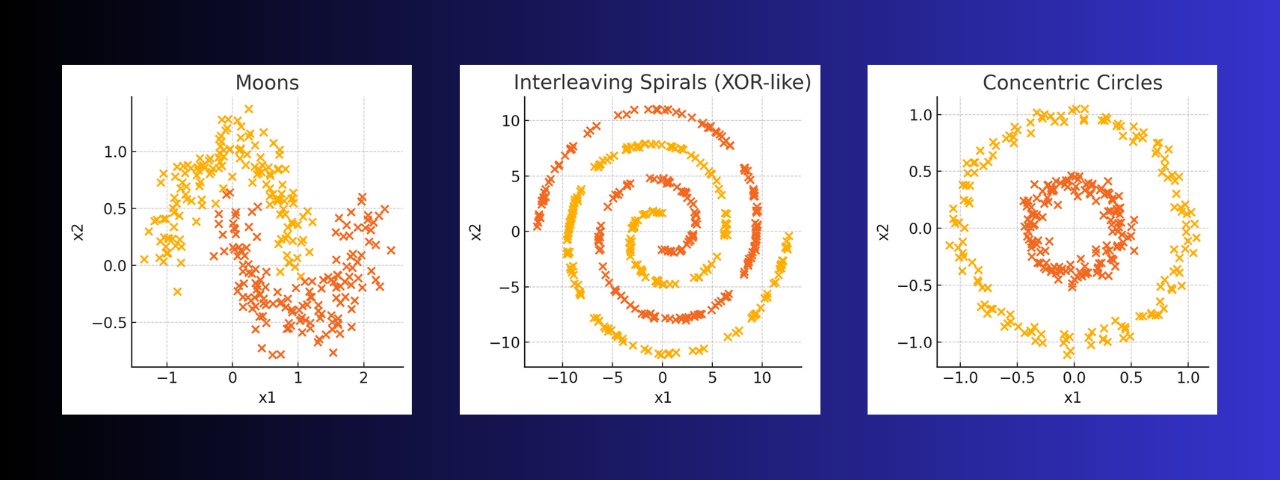

Non Linear Data

2. Manually Mapping to Higher Dimensions

Imagine the circles dataset: one class is points inside radius 0.5, the other is points outside radius 0.9. No line in 2D can separate them.

But if we add a third coordinate z = x² + y², suddenly the inner circle becomes a flat disk at z ≈ 0.25 and the outer ring lives at z ≈ 0.81.

A single plane at z = 0.5 now perfectly separates them.

Beautiful, except computing and storing millions of transformed features is suicidal. This is exactly the problem the kernel trick solves.

3. Enter the Kernel Trick - Magic Without the Computational Cost

The SVM optimization only ever needs dot products between points in the high-dimensional space, not the coordinates themselves.

If we can compute ⟨ϕ(x), ϕ(y)⟩ directly. Without ever calculating the (possibly infinite-dimensional) ϕ(x), we get all the power of the higher space for the price of a function calls in the original space.

That function K(x, y) = ⟨ϕ(x), ϕ(y)⟩ is called a kernel.

And yes, some kernels correspond to infinite-dimensional spaces (looking at you, RBF).

4. What Makes a Valid Kernel?

Not every random function can be a kernel. Mercer’s theorem says K must be positive semi-definite. Translation for humans: the N×N kernel matrix for any set of N points must have only non-negative eigenvalues.

That’s it.

If it satisfies that, there exists some (possibly infinite) feature space where K really is a dot product. Common kernels that pass the test are as follows.

Kernel	Formula	When To use?
Linear	K(x,y) = xᵀy	Already almost linear, want speed
Polynomial	K(x,y) = (γ xᵀy + r)ᵈ	Images with normalized pixel values
RBF / Gaussian	K(x,y) = exp(−γ ║x−y║²)	Default choice, works almost everywhere
Sigmoid	K(x,y) = tanh(γ xᵀy + r)	Rarely, sometimes mimics neural nets

5. Math That Actually Helps

The primal SVM problem a bit is scary. The dual is where the magic happens:

maximize ∑αᵢ − ½ ∑∑ αᵢαⱼ yᵢyⱼ K(xᵢ, xⱼ) subject to 0 ≤ αᵢ ≤ C and ∑αᵢ yᵢ = 0

Notice something beautiful: the only place data appears is inside kernel evaluations K(xᵢ, xⱼ). Replace K with RBF and you’re suddenly solving an infinite-dimensional problem using just an N×N matrix. Where N is the number of training points, not the number of features. That’s the entire trick.

6. Code Walkthrough

1import numpy as np
2import matplotlib.pyplot as plt
3from sklearn import svm
4from sklearn.datasets import make_moons, make_circles
5from sklearn.inspection import DecisionBoundaryDisplay
6
7X, y = make_moons(n_samples=200, noise=0.2, random_state=42)
8
9fig, axs = plt.subplots(1, 3, figsize=(18, 5))
10
11kernels = ['linear', 'poly', 'rbf']
12titles  = ['Linear kernel (fails)', 'Polynomial kernel (degree 3)', 'RBF kernel (nails it)']
13
14for ax, kernel, title in zip(axs, kernels, titles):
15    clf = svm.SVC(kernel=kernel, gamma='scale', C=1.0)
16    clf.fit(X, y)
17
18    DecisionBoundaryDisplay.from_estimator(clf, X, ax=ax, cmap='RdBu', alpha=0.8)
19    ax.scatter(X[:,0], X[:,1], c=y, cmap='RdBu', edgecolor='k')
20    ax.set_title(title)
21    ax.set_xticks(()); ax.set_yticks(())
22
23plt.tight_layout()
24plt.show()

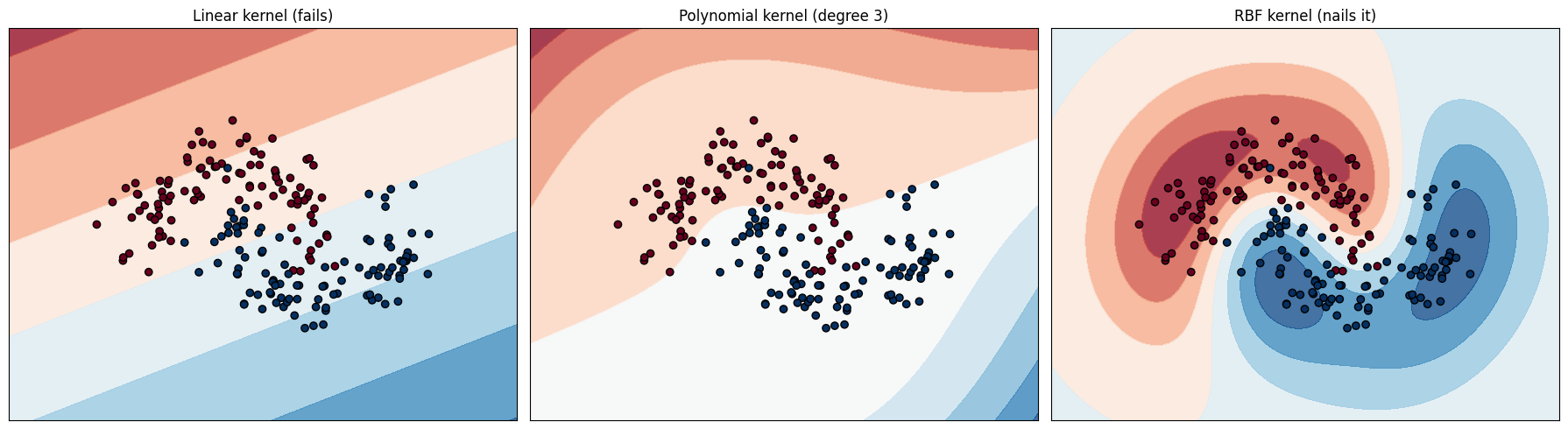

Kernels

7. Where the Kernel Trick Lives Today? Yes Even in 2025!

You might think kernel methods died when deep learning took over. They didn’t die, they just went undercover.

Classic computer vision tracking (KCF, MOSSE, DCF): although it's true these are less popular, OpenCV even moded them to Legacy module.
Gaussian Processes (the Bayesian cousin of SVMs) : still the gold standard for small-data regression in robotics and 3D-print process optimization
Attention in Transformers: reformulated it as a kernel: softmax(x,y) = softmax(xᵀy / √d)
Neural Tangent Kernel (NTK): explains why infinitely wide neural nets behave exactly like kernel machines

So every time you fine-tune a vision transformer for defect detection on your 3D prints, you’re indirectly riding the same mathematical ghost of the kernel trick.

8. Common Pitfalls & How I Learned Them the Hard Way

Forgetting to scale your features: RBF kernel is distance-based. If one feature is in millimetres and another in microns, the kernel matrix becomes garbage. Fix: StandardScaler() always, no exceptions.
Letting gamma run wild: Too large => model memorizes noise. Too small => underfits. Rule of thumb: start with gamma='scale' (1 / (n_features * X.var())) and only touch it if you have time for GridSearchCV.
Using kernels on truly huge datasets: The N×N kernel matrix kills you above 20k samples. witch to LinearSVC or SGDClassifier with hinge loss at that point.
Thinking C is just regularization: In kernel SVMs, C also controls how many support vectors you keep. Low C = smoother boundary, fewer SVs. High C = wiggly boundary, almost all points become support vectors, resulting in slow prediction.

8. Conclusion: The Kernel Trick Is Just Clever Linear Algebra

After all the math and code, it boils down to one profoundly simple idea.

“If your algorithm only needs dot products in some crazy high- (or infinite) dimensional space, and you can compute those dot products cheaply in the original space, you get the power of the crazy space for free.”

That sentence took me three years and two failed Kaggle competitions to internalize. Now it’s yours in under ten minutes. Next time you train an RBF SVM that perfectly separates impossible-looking data, or you watch a drone stay rock-steady using a Gaussian Process controller, or you see a 2025 vision transformer crush a benchmark, just smile and whisper: “They’re all just pretending to live in infinite dimensions, and getting away with it.”
